Schema xpdl.xsd

No documentation

attribute

Id

element

Activities | Activity | ActivitySet | ActivitySets | ActualParameter | ActualParameters | Application | Applications | ArrayType | Author | Automatic | BasicType | BlockActivity | Codepage | Condition | ConformanceClass | Cost | CostUnit | Countrykey | Created | DataField | DataFields | DataType | Deadline | DeclaredType | Description | Documentation | Duration | EnumerationType | EnumerationValue | ExtendedAttribute | ExtendedAttributes | ExternalPackage | ExternalPackages | ExternalReference | FinishMode | FormalParameter | FormalParameters | Icon | Implementation | InitialValue | Join | Length | Limit | ListType | Manual | Member | No | Package | PackageHeader | Participant | ParticipantType | Participants | Performer | Priority | PriorityUnit | ProcessHeader | RecordType | RedefinableHeader | Responsible | Responsibles | Route | SchemaType | Script | SimulationInformation | Split | StartMode | SubFlow | TimeEstimation | Tool | Transition | TransitionRef | TransitionRefs | TransitionRestriction | TransitionRestrictions | Transitions | TypeDeclaration | TypeDeclarations | UnionType | ValidFrom | ValidTo | Vendor | Version | WaitingTime | WorkflowProcess | WorkflowProcesses | WorkingTime | XPDLVersion | Xpression

group

DataTypes

Attribute Id

No documentation


Element Activities

No documentation

Elements

ElementTypeDocumentation
Activity Local type No documentation

Element Activity

No documentation

Elements

ElementTypeDocumentation
Description xsd:string No documentation
Limit xsd:string No documentation
Route Local type No documentation
xpdl:Implementation Local type No documentation
InitialValue xsd:string No documentation
Length xsd:string No documentation
BlockActivity Local type No documentation
Performer xsd:string No documentation
StartMode Local type No documentation

Attributes

AttributeTypeDocumentation
Id xsd:NMTOKEN No documentation
Name xsd:string No documentation

Element ActivitySet

No documentation

Elements

ElementTypeDocumentation
Activities Local type No documentation
Transitions Local type No documentation

Attributes

AttributeTypeDocumentation
Id xsd:NMTOKEN No documentation

Element ActivitySets

No documentation

Elements

ElementTypeDocumentation
ActivitySet Local type No documentation

Element ActualParameter

No documentation


Element ActualParameters

No documentation

Elements

ElementTypeDocumentation
ActualParameter xsd:string No documentation

Element Application

No documentation

Elements

ElementTypeDocumentation
Description xsd:string No documentation
FormalParameters Local type No documentation
ExternalReference Local type No documentation
ExtendedAttributes Local type No documentation

Attributes

AttributeTypeDocumentation
Id xsd:NMTOKEN No documentation
Name xsd:string No documentation

Element Applications

No documentation

Elements

ElementTypeDocumentation
Application Local type No documentation

Element ArrayType

No documentation

Attributes

AttributeTypeDocumentation
LowerIndex xsd:NMTOKEN No documentation
UpperIndex xsd:NMTOKEN No documentation

Element Author

No documentation


Element Automatic

No documentation


Element BasicType

No documentation

Attributes

AttributeTypeDocumentation
Type Local type No documentation

Element BlockActivity

No documentation

Attributes

AttributeTypeDocumentation
BlockId xsd:NMTOKEN No documentation

Element Codepage

No documentation


Element Condition

No documentation

Elements

ElementTypeDocumentation
Xpression Local type No documentation

Attributes

AttributeTypeDocumentation
Type Local type No documentation

Element ConformanceClass

No documentation

Attributes

AttributeTypeDocumentation
GraphConformance Local type No documentation

Element Cost

No documentation


Element CostUnit

No documentation


Element Countrykey

No documentation


Element Created

No documentation


Element DataField

No documentation

Elements

ElementTypeDocumentation
DataType Local type No documentation
InitialValue xsd:string No documentation
Length xsd:string No documentation
Description xsd:string No documentation
ExtendedAttributes Local type No documentation

Attributes

AttributeTypeDocumentation
Id xsd:NMTOKEN No documentation
Name xsd:string No documentation
IsArray Local type No documentation

Element DataFields

No documentation

Elements

ElementTypeDocumentation
DataField Local type No documentation

Element DataType

No documentation


Group DataTypes

No documentation

Elements

ElementTypeDocumentation
BasicType Local type No documentation
DeclaredType Local type No documentation
SchemaType Local type No documentation
ExternalReference Local type No documentation
RecordType Local type No documentation
UnionType Local type No documentation
EnumerationType Local type No documentation
ArrayType Local type No documentation
ListType Local type No documentation

Element Deadline

No documentation

Elements

ElementTypeDocumentation
DeadlineCondition Local type No documentation
ExceptionName Local type No documentation

Attributes

AttributeTypeDocumentation
Execution Local type No documentation

Element DeclaredType

No documentation

Attributes

AttributeTypeDocumentation
Id xsd:IDREF No documentation

Element Description

No documentation


Element Documentation

No documentation


Element Duration

No documentation


Element EnumerationType

No documentation

Elements

ElementTypeDocumentation
EnumerationValue Local type No documentation

Element EnumerationValue

No documentation

Attributes

AttributeTypeDocumentation
Name xsd:NMTOKEN No documentation

Element ExtendedAttribute

No documentation

Attributes

AttributeTypeDocumentation
Name xsd:NMTOKEN No documentation
Value xsd:string No documentation

Element ExtendedAttributes

No documentation

Elements

ElementTypeDocumentation
ExtendedAttribute Local type No documentation

Element ExternalPackage

No documentation

Elements

ElementTypeDocumentation
ExtendedAttributes Local type No documentation

Attributes

AttributeTypeDocumentation
href xsd:string No documentation

Element ExternalPackages

No documentation

Elements

ElementTypeDocumentation
ExternalPackage Local type No documentation

Element ExternalReference

No documentation

Attributes

AttributeTypeDocumentation
xref xsd:NMTOKEN No documentation
location xsd:anyURI No documentation
namespace xsd:anyURI No documentation

Element FinishMode

No documentation

Elements

ElementTypeDocumentation
Automatic Local type No documentation
Manual Local type No documentation

Element FormalParameter

No documentation

Elements

ElementTypeDocumentation
DataType Local type No documentation
Description xsd:string No documentation

Attributes

AttributeTypeDocumentation
Id xsd:NMTOKEN No documentation
Index xsd:NMTOKEN No documentation
Mode Local type No documentation

Element FormalParameters

No documentation

Elements

ElementTypeDocumentation
FormalParameter Local type No documentation

Element Icon

No documentation


Element Implementation

No documentation

Elements

ElementTypeDocumentation
No Local type No documentation
Tool Local type No documentation
SubFlow Local type No documentation

Element InitialValue

No documentation


Element Join

No documentation

Attributes

AttributeTypeDocumentation
Type Local type No documentation

Element Length

No documentation


Element Limit

No documentation


Element ListType

No documentation


Element Manual

No documentation


Element Member

No documentation


Element No

No documentation


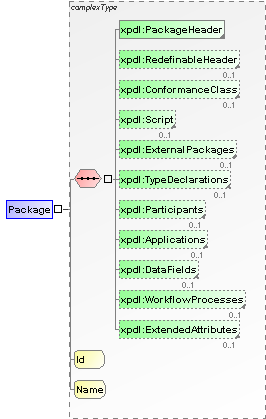

Element Package

No documentation

Elements

ElementTypeDocumentation
PackageHeader Local type No documentation
RedefinableHeader Local type No documentation
ConformanceClass Local type No documentation
Script Local type No documentation
ExternalPackages Local type No documentation
TypeDeclarations Local type No documentation
Participants Local type No documentation
Applications Local type No documentation
DataFields Local type No documentation
WorkflowProcesses Local type No documentation
ExtendedAttributes Local type No documentation

Attributes

AttributeTypeDocumentation
Id xsd:NMTOKEN No documentation
Name xsd:string No documentation

Element PackageHeader

No documentation

Elements

ElementTypeDocumentation
XPDLVersion xsd:string No documentation
Vendor xsd:string No documentation
Created xsd:string No documentation
Description xsd:string No documentation
Documentation xsd:string No documentation
PriorityUnit xsd:string No documentation
CostUnit xsd:string No documentation

Element Participant

No documentation

Elements

ElementTypeDocumentation
ParticipantType Local type No documentation
Description xsd:string No documentation
ExternalReference Local type No documentation
ExtendedAttributes Local type No documentation

Attributes

AttributeTypeDocumentation
Id xsd:NMTOKEN No documentation
Name xsd:string No documentation

Element ParticipantType

No documentation

Attributes

AttributeTypeDocumentation
Type Local type No documentation

Element Participants

No documentation

Elements

ElementTypeDocumentation
Participant Local type No documentation

Element Performer

No documentation


Element Priority

No documentation


Element PriorityUnit

No documentation


Element ProcessHeader

No documentation

Elements

ElementTypeDocumentation
Created xsd:string No documentation
Description xsd:string No documentation
Priority xsd:string No documentation
Limit xsd:string No documentation
ValidFrom xsd:string No documentation
ValidTo xsd:string No documentation
TimeEstimation Local type No documentation

Attributes

AttributeTypeDocumentation
DurationUnit Local type No documentation

Element RecordType

No documentation

Elements

ElementTypeDocumentation
Member Local type No documentation

Element RedefinableHeader

No documentation

Elements

ElementTypeDocumentation
Author xsd:string No documentation
Version xsd:string No documentation
Codepage xsd:string No documentation
Countrykey xsd:string No documentation
Responsibles Local type No documentation

Attributes

AttributeTypeDocumentation
PublicationStatus Local type No documentation

Element Responsible

No documentation


Element Responsibles

No documentation

Elements

ElementTypeDocumentation
Responsible xsd:string No documentation

Element Route

No documentation


Element SchemaType

No documentation


Element Script

No documentation

Attributes

AttributeTypeDocumentation
Type xsd:string No documentation
Version xsd:string No documentation
Grammar xsd:anyURI No documentation

Element SimulationInformation

No documentation

Elements

ElementTypeDocumentation
Cost xsd:string No documentation
TimeEstimation Local type No documentation

Attributes

AttributeTypeDocumentation
Instantiation Local type No documentation

Element Split

No documentation

Elements

ElementTypeDocumentation
TransitionRefs Local type No documentation

Attributes

AttributeTypeDocumentation
Type Local type No documentation

Element StartMode

No documentation

Elements

ElementTypeDocumentation
Automatic Local type No documentation
Manual Local type No documentation

Element SubFlow

No documentation

Elements

ElementTypeDocumentation
ActualParameters Local type No documentation

Attributes

AttributeTypeDocumentation
Id xsd:string No documentation
Execution Local type No documentation

Element TimeEstimation

No documentation

Elements

ElementTypeDocumentation
WaitingTime xsd:string No documentation
WorkingTime xsd:string No documentation
Duration xsd:string No documentation

Element Tool

No documentation

Elements

ElementTypeDocumentation
ActualParameters Local type No documentation
Description xsd:string No documentation
ExtendedAttributes Local type No documentation

Attributes

AttributeTypeDocumentation
Id xsd:NMTOKEN No documentation
Type Local type No documentation

Element Transition

No documentation

Elements

ElementTypeDocumentation
Condition Local type No documentation
Description xsd:string No documentation
ExtendedAttributes Local type No documentation

Attributes

AttributeTypeDocumentation
Id xsd:NMTOKEN No documentation
From xsd:NMTOKEN No documentation
To xsd:NMTOKEN No documentation
Name xsd:string No documentation

Element TransitionRef

No documentation

Attributes

AttributeTypeDocumentation
Id xsd:NMTOKEN No documentation

Element TransitionRefs

No documentation

Elements

ElementTypeDocumentation
TransitionRef Local type No documentation

Element TransitionRestriction

No documentation

Elements

ElementTypeDocumentation
Join Local type No documentation
Split Local type No documentation

Element TransitionRestrictions

No documentation

Elements

ElementTypeDocumentation
TransitionRestriction Local type No documentation

Element Transitions

No documentation

Elements

ElementTypeDocumentation
Transition Local type No documentation

Element TypeDeclaration

No documentation

Elements

ElementTypeDocumentation
Description xsd:string No documentation
ExtendedAttributes Local type No documentation

Attributes

AttributeTypeDocumentation
Id xsd:ID No documentation
Name xsd:string No documentation

Element TypeDeclarations

No documentation

Elements

ElementTypeDocumentation
TypeDeclaration Local type No documentation

Element UnionType

No documentation

Elements

ElementTypeDocumentation
Member Local type No documentation

Element ValidFrom

No documentation


Element ValidTo

No documentation


Element Vendor

No documentation


Element Version

No documentation


Element WaitingTime

No documentation

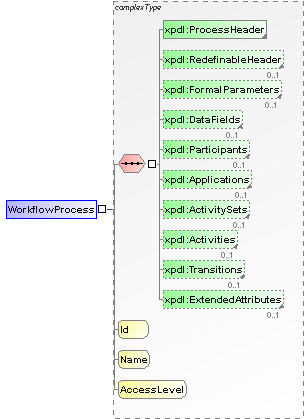

Element WorkflowProcess

No documentation

Elements

ElementTypeDocumentation
ProcessHeader Local type No documentation
RedefinableHeader Local type No documentation
FormalParameters Local type No documentation
DataFields Local type No documentation
Participants Local type No documentation
Applications Local type No documentation
ActivitySets Local type No documentation
Activities Local type No documentation
Transitions Local type No documentation
ExtendedAttributes Local type No documentation

Attributes

AttributeTypeDocumentation
Id xsd:NMTOKEN No documentation
Name xsd:string No documentation
AccessLevel Local type No documentation

Element WorkflowProcesses

No documentation

Elements

ElementTypeDocumentation
WorkflowProcess Local type No documentation

Element WorkingTime

No documentation


Element XPDLVersion

No documentation


Element Xpression

No documentation


Generated with EditiX : http://www.editix.com at Fri Jan 11 16:12:23 CET 2008
